slide-01
Introduction to Remote Sensing This Photo by Unknown Author is licensed under CC BY

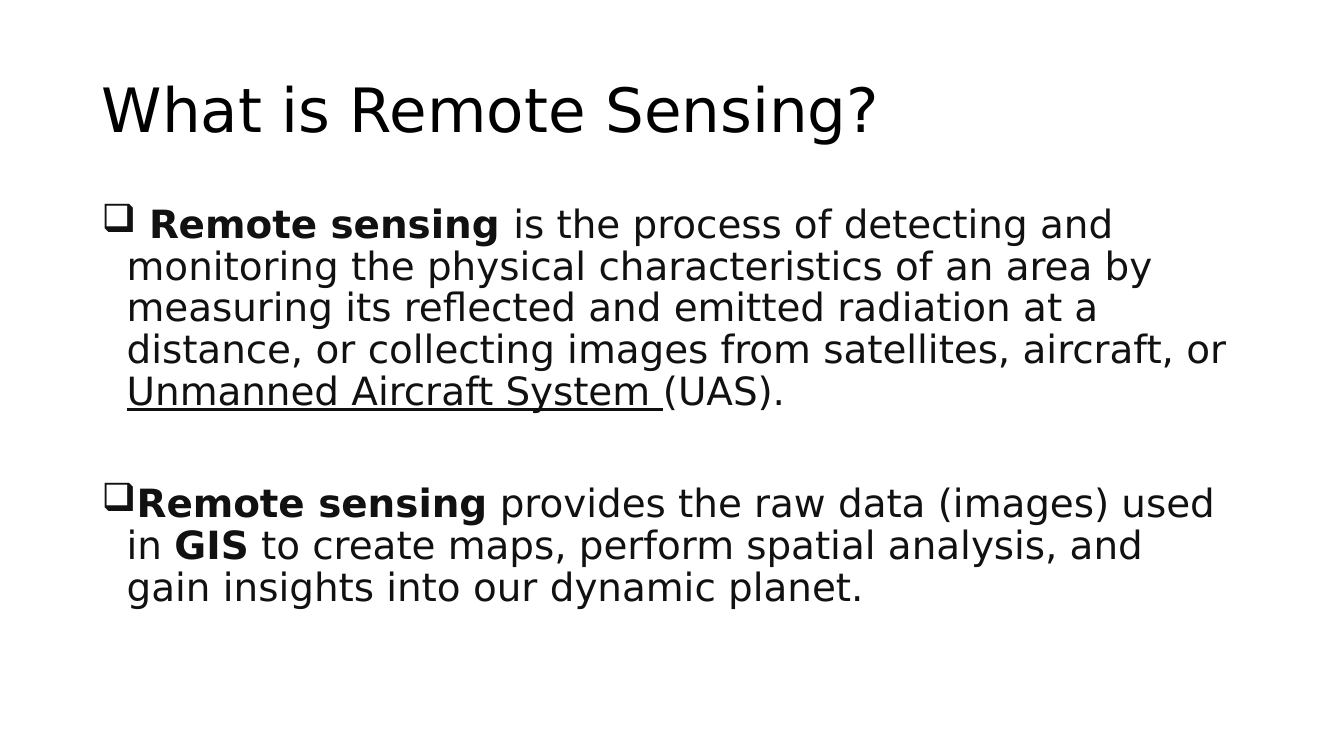

slide-02
What is Remote Sensing? Remote sensing is the process of detecting and monitoring the physical characteristics of an area by measuring its reflected and emitted radiation at a distance, or collecting images from satellites, aircraft, or Unmanned Aircraft System (UAS). Remote sensing provides the raw data (images) used in GIS to create maps, perform spatial analysis, and gain insights into our dynamic planet.
slide-03
(UAS) UAV Is a system that includes an unmanned aircraft, remote control station and wireless data link. UAS
slide-04
(UAS) GP S UA V ta Da k Lin Antenna

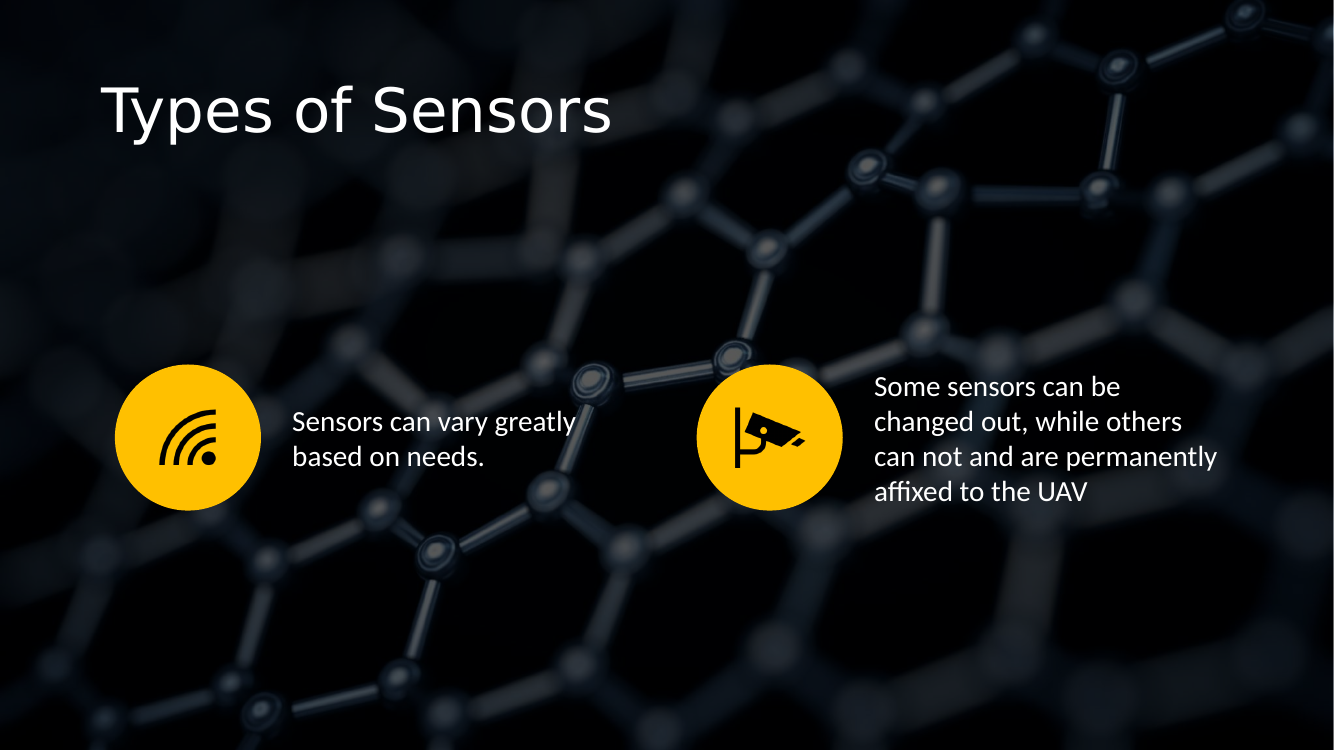

slide-05
Types of Sensors Some sensors can be Sensors can vary greatly changed out, while others based on needs. can not and are permanently affixed to the UAV
slide-06
slide-07
Lidar Sensor along with Thermal Camera
slide-08
Multispectral Camera and RGB Camera
slide-09
RGB Camera

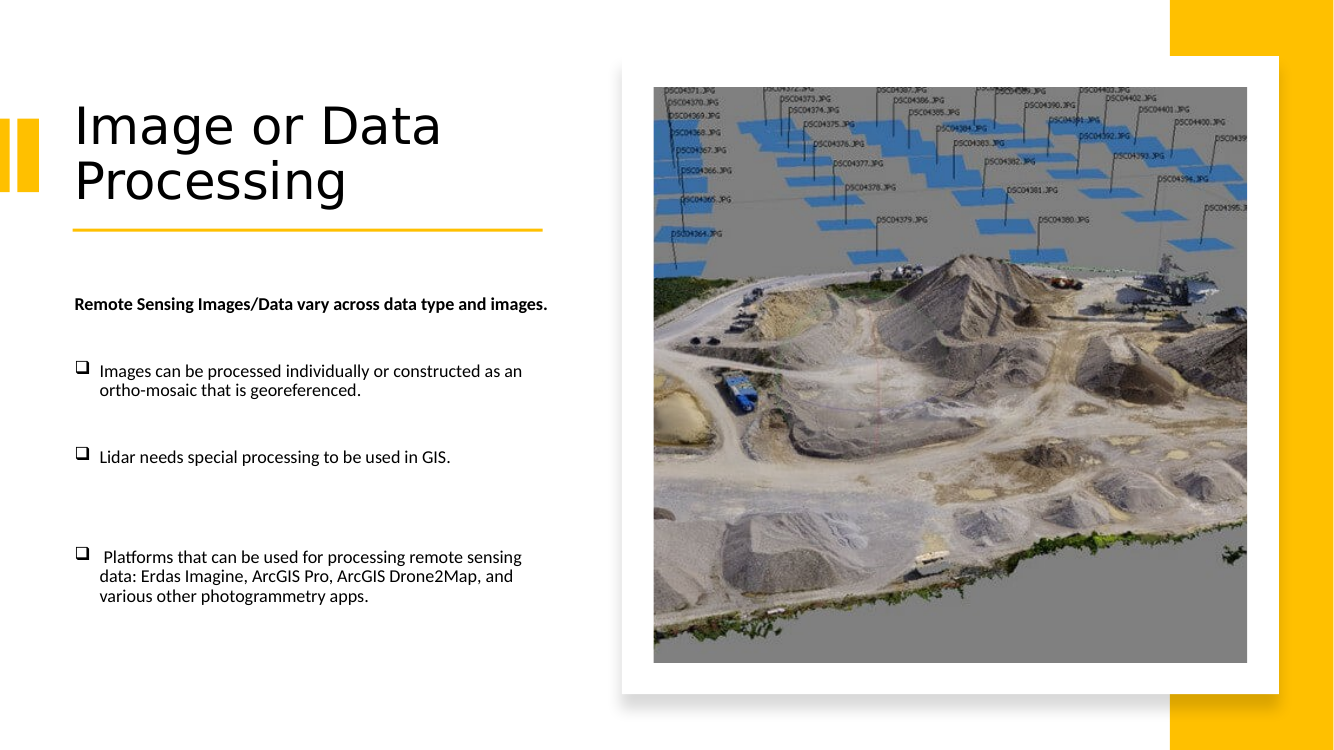

slide-10
Image or Data Processing Remote Sensing Images/Data vary across data type and images. Images can be processed individually or constructed as an ortho-mosaic that is georeferenced. Lidar needs special processing to be used in GIS. Platforms that can be used for processing remote sensing data: Erdas Imagine, ArcGIS Pro, ArcGIS Drone2Map, and various other photogrammetry apps.
